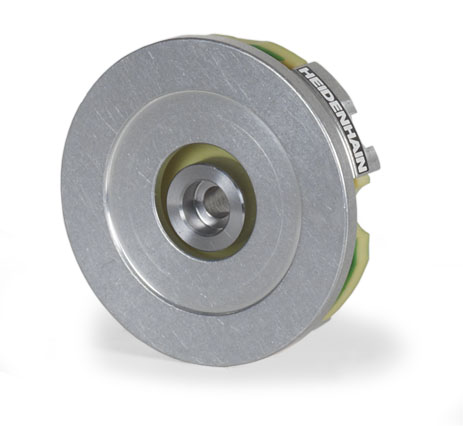

Ewith integral bearing EBI 1135 Mã sản phẩm: EBI 1135 Nhà Sản Xuất:

EBI 1135 [ ExI 1100 ]
Rotary Encoders without Integral Bearings for Integration in Motors
Measuring procedures Absolute (Multiturn)
Bearing without Integral Bearing
Incremental signals –
System accuracy ± 120''
Absolute position values EnDat 2.2
Order designation EnDat 22
Positions per rev 262144 (18 bits)
Distinguishable revolutions 65 536 (16 bit)
Electrically permissible speed/Deviations ≤ 12000 min-1 (fuer stetigen Positionswert)
Processing time tcal ≤ 6 µs
Power supply 3.6 to 14 V
Current consumption (w/o load) 5V: 80 mA
Electrical connection Via PCB connector
Electrical connection 15-pin
Shaft Blind hollow shaft
Shaft diameter 6 mm
Mech. permissible speed n ≤ 12000 min-1
Permissible axial motion of measured shaft  ± 0.3 mm
Vibration 55 to 2000 Hz ≤ 300 m/s² (IEC 60 068-2-6)
Shock (6 ms) ≤ 1000 m/s² (EN 60068-2-27)
Max. operating temperature 115 °C
Min. operating temperature -20 °C
Protection IEC 60529 IP 66 at housing; IP 64 at shaft inlet
Weight 0.02 kg
