Danh mục sản phẩm > > Heidenhain Encoder > with integral bearing ECN 1319

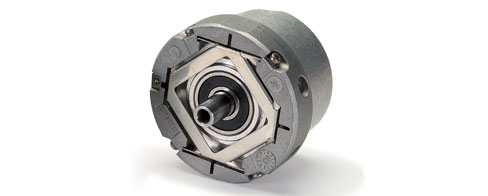

with integral bearing ECN 1319

Mã sản phẩm: ECN 1319
Nhà Sản Xuất:

ECN 1319 [ ExN 1300 ]
Rotary Encoders for Absolute Position Values with Safe Singleturn Information

Size 65 mm
Bearing With integral bearing
Measuring procedures Absolute (singleturn)
Mounting Mounted stator coupling
Functional Safety SIL 2 according to EN 61508 (further basis for testing: EN 61800-5-2) Category 3 PL d according to EN ISO 13849-1:2008
Absolute position values EnDat 2.2
Order designation EnDat 22
Positions per rev 524 288 (19 bits)
Electrically permissible speed/Deviations ≤ 15000 min-–1
Processing time tcal ≤ 7 µs
System accuracy ± 20"
Power supply 3.6 to 14 V
Current consumption (w/o load) 5V: 85 mA
Electrical connection Via PCB connector
Electrical connection Rotary encoder: 12-pin Temperature sensor: 4-pin
Shaft Taper shaft; taper 1:10
Shaft diameter 9,25 mm
Mech. permissible speed n ≤ 15000 min-1
Starting torque (at 20°C) ≤ 0,01 Nm
Moment of inertia of the rotor 2,6 x 10-6 kgm²
Natural frequency of stator coupling ≥ 1800 Hz
Permissible axial motion of measured shaft  ± 0.5 mm
Vibration 55 to 2000 Hz ≤ 300 m/s² (IEC 60068-2-6)
Shock (6 ms) ≤ 2000 m/s² (EN 60068-2-27)
Max. operating temperature 115 °C
Min. operating temperature -40
Protection IEC 60529 IP 40 when mounted
Weight Approx. 0.25 kg
