Ewith integral bearing CN 1013 Mã sản phẩm: ECN 1013 Nhà Sản Xuất:

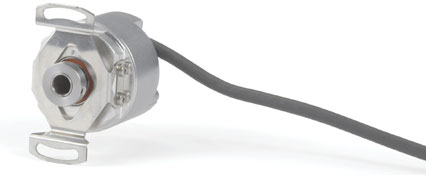

ECN 1013 [ ExN 1000 ]
Rotary encoder with mounted stator coupling
Compact dimensions
Blind hollow shaftØ 6 mm
Size 35 mm
Bearing With integral bearing
Mounting Mounted stator couplingØ 45 mm
Measuring procedures Absolute (singleturn)
Incremental signals 1 VSS
Line counts 512
Cutoff frequency -3dB ≥ 190 kHz
System accuracy ± 60"
Absolute position values EnDat 2.2
Order designation EnDat 01
Positions per rev 8192 (13 bits)
Electrically permissible speed/Deviations 4000 min-1/± 1 LSB 12000 min-1/± 16 LSB
Processing time tcal ≤ 9 µs
Electrical connection Cable
Electrical connection 1 m, with M23 coupling
Power supply 3.6 to 14 V
Current consumption (w/o load)
Shaft Blind hollow shaft
Shaft diameter 6 mm
Mech. permissible speed n ≤ 12000 min-1
Starting torque (at 20°C) ≤ 0,001 Nm
Moment of inertia of the rotor 0,5 x 10-6 kgm²
Permissible axial motion of measured shaft  ± 0.5 mm
Vibration 55 to 2000 Hz ≤ 100 m/s² (IEC 60 068-2-6)
Shock (6 ms) ≤ 1000 m/s² (EN 60068-2-27)
Max. operating temperature 100°C
Min. operating temperature Rigid configuration: -30 °C For frequent flexing: -10 °C
Protection IEC 60529 IP 64
Weight 0.1 kg
