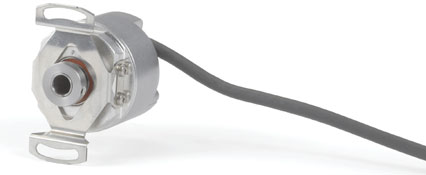

ECN 1113 [ ExN 1100 ]
Rotary encoders with integral bearing for integration in motors
Mounted stator couplingØ 45 mm
Compact design
Blind hollow shaft
Size 35 mm
Bearing With integral bearing
Mounting Mounted stator couplingØ 45 mm
Incremental signals 1 VSS
Measuring procedures Absolute (singleturn)
Line counts 512
Cutoff frequency -3dB ≥ 190 kHz
System accuracy ± 60"
Absolute position values EnDat 2.2
Order designation EnDat 01
Positions per rev 8192 (13 bits)
Electrically permissible speed/Deviations 4000 min-1/± 1 LSB 12000 min-1/± 16 LSB
Processing time tcal ≤ 9 µs
Electrical connection Via PCB connector
Electrical connection 12-pin
Power supply 3.6 to 14 V
Current consumption (w/o load)
Shaft Blind hollow shaft
Shaft diameter 6 mm
Mech. permissible speed n ≤ 12000 min-1
Starting torque (at 20°C) ≤ 0,001 Nm
Moment of inertia of the rotor ca. 0,4 x 10-6 kgm2
Natural frequency of stator coupling ≥ 1500 Hz
Permissible axial motion of measured shaft  ± 0.5 mm
Vibration 55 to 2000 Hz ≤ 200 m/s² (EN 60068-2-6)
Shock (6 ms) ≤ 1000 m/s² (EN 60068-2-27)
Max. operating temperature 115 °C
Min. operating temperature -40 °C
Protection IEC 60529 IP 40 when mounted
Weight 0.1 kg
