Danh mục sản phẩm > > Heidenhain Encoder > Ewith integral bearing

Ewith integral bearing

Mã sản phẩm:
Nhà Sản Xuất:

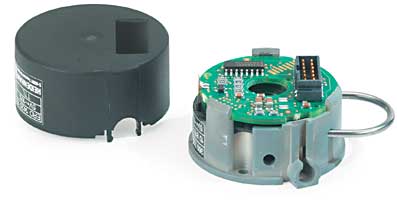

ERO 1420 [ ERO 1400 ]
Rotary Encoders for Integration in Motors
Miniature size
Integral mounting aid

Measuring procedures Incremental
Bearing without Integral Bearing
Incremental signals TTL
Line counts 51210001024
Signal periods/rev 51210001024
Edge separation a ≥ 0,39 µs
Scanning frequency ≤ 300 kHz
System accuracy 512 Striche: ± 139" 1000 Striche: ± 112" 1024 Striche: ± 112"
Reference marks One
Power supply 5 V± 10 %
Current consumption (w/o load) ≤ 150 mA
Electrical connection Cable 1 m
Electrical connection Radial, without connecting element
Shaft Blind hollow shaft
Shaft diameter 4 mm6 mm8 mm
Mech. permissible speed n ≤ 30000 min-1
Moment of inertia of the rotor Ø 4 mm: 0,28 x 10-6 kgm² Ø 6 mm: 0,27 x 10-6 kgm² Ø 8 mm: 0,25 x 10-6 kgm²
Permissible axial motion of measured shaft  ± 0.1 mm
Vibration 55 to 2000 Hz ≤ 100 m/s² (IEC 60 068-2-6)
Shock (6 ms) ≤ 1000 m/s² (EN 60 068-2-27)
Max. operating temperature 70°C
Min. operating temperature -10 °C
Protection IEC 60529 IP 40
Weight 0.07 kg
