Danh mục sản phẩm > > Heidenhain Encoder > with integral bearing ECN 1325

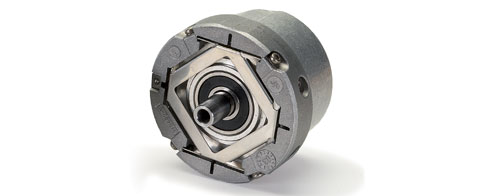

with integral bearing ECN 1325

Mã sản phẩm: ECN 1325
Nhà Sản Xuất:

ECN 1325 [ ExN 1300 ]
Drehgeber mit Eigenlagerung zum Einbau in Motoren

Size 65 mm
Bearing With integral bearing
Measuring procedures Absolute (singleturn)
Mounting Mounted stator coupling
Absolute position values EnDat 2.2
Order designation EnDat 22
Positions per rev 33554432 (25 bits)
Electrically permissible speed/Deviations ≤ 15000 min-–1
Processing time tcal ≤ 7 µs
Line counts 2048
Cutoff frequency -3dB ≥ 400 kHz
System accuracy ± 20"
Power supply 3.6 to 14 V
Current consumption (w/o load) ≤ 160 mA
Electrical connection Via PCB connector
Electrical connection Rotary encoder: 12-pin Temperature sensor: 4-pin
Shaft Taper shaft; taper 1:10
Shaft diameter 9,25 mm
Mech. permissible speed n ≤ 15000 min-1
Starting torque (at 20°C) ≤ 0,01 Nm
Moment of inertia of the rotor 2,6 x 10-6 kgm²
Natural frequency of stator coupling ≥ 1800 Hz
Permissible axial motion of measured shaft  ± 0.5 mm
Vibration 55 to 2000 Hz ≤ 300 m/s² (IEC 60068-2-6)
Shock (6 ms) ≤ 2000 m/s² (EN 60068-2-27)
Max. operating temperature 115 °C
Min. operating temperature -40
Protection IEC 60529 IP 40 when mounted
Weight Approx. 0.25 kg
