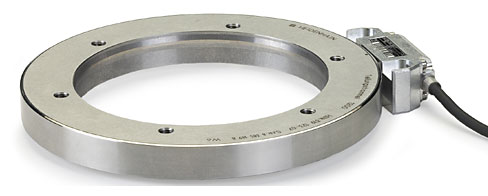

ERM 280 Magnetic modular encoder
Magnetic modular encoders
Electrical connection Cable
Electrical connection 1 m with coupling1 m without coupling
Measuring procedures Incremental
Bearing without Integral Bearing
Incremental signals 1 VSS
Line count 1400
Reference marks One
Cutoff frequency -3dB ≥ 300 kHz
System accuracy ± 18''
Accuracy of graduation ± 7''
Power supply 5 V± 10 %
Current consumption (w/o load) ≤ 150 mA
Max. cable length 100 m
Scale drum inside diameter 130 mm
Scale drum outside diameter 176.03 mm
Mech. permissible speed n ≤ 9000 min-1
Moment of inertia of the rotor 7,7 x 10-3 kgm²
Permissible axial motion of measured shaft  ± 1.25 mm
Vibration 55 to 2000 Hz ≤ 400 m/s² (IEC 60 068-2-6)
Shock (6 ms) ≤ 1000 m/s² (EN 60 068-2-27)
Max. operating temperature 100°C
Min. operating temperature -10 °C
Protection IEC 60529 IP 67
Scale Drum Approx. 1.2 kg
Scanning head with cable Approx. 0.15 kg
Scanning frequency ≥ 300 kHz
