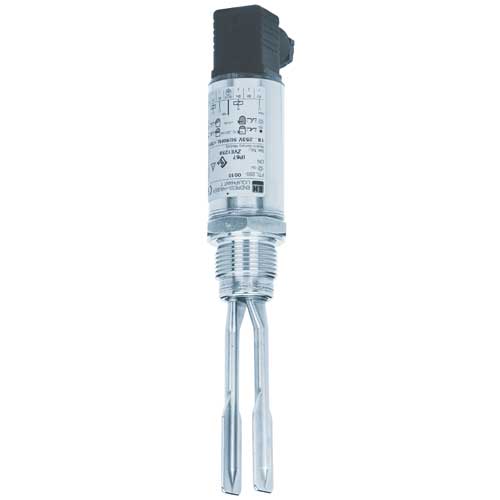

Liquiphant FTL20 19 253 VAC FTL20-0010 Mã sản phẩm: FTL20-0010,FTL20-0110 Nhà Sản Xuất: Endress Hauser

The maintenance-free alternative to float switches
Your benefits
•Small, slender design: low space requirement, easy mounting in places with limited access
•Stainless steel housing: rugged
•Switching status and external testing: simple control
•Plug connection: low-cost connection
Field of application
The Liquiphant is a limit switch for liquid level detection in storage tanks, tanks with agitators, and piping.
It can be used as an alternative to float switches as well as in applications where build-up, turbulence, liquid flow and gas bubbles are present.
Measuring Principle
Vibration Liquids
Characteristic / Application
compact device
media independent
Switch point 118mm
Supply / Communication
19 … 253V AC
10 … 55V DC-PNP
Ambient temperature
-40 °C … 70 °C
(-40 °F … 158 °)
Process temperature
-40 °C … 150 °C
(-40 °F … 302 °F)
Process pressure absolute / max. overpressure limit
Vacuum … 40 bar
(Vacuum … 580 psi)
Min. density of medium
0,7g/cm3
Main wetted parts
316Ti
Process connection
G1A, NPT1″, R1″
Sensor length
130mm (5.12″)
Output
AC, 2-wire
DC-PNP, 3-wire
Certificates / Approvals
WHG/ Overfill prevention
CSA
GL marine
