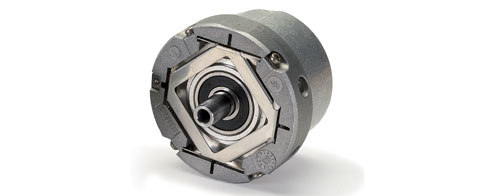

with integral bearing ECN 1313 Mã sản phẩm: ECN 1313 Nhà Sản Xuất:

ECN 1313 [ ExN 1300 ]
Drehgeber mit Eigenlagerung zum Einbau in Motoren
Size 65 mm
Bearing With integral bearing
Measuring procedures Absolute (singleturn)
Mounting Mounted stator coupling
Absolute position values EnDat 2.2
Order designation EnDat 01
Positions per rev 8192 (13 bits)
Electrically permissible speed/Deviations 5000 min-1/± 1 LSB 12000 min-1/± 100 LSB
Processing time tcal ≤ 9 µs
Incremental signals 1 VSS
Line counts 512
Cutoff frequency -3dB ≥ 130 kHz
System accuracy ± 60"
Power supply 3.6 to 14 V
Current consumption (w/o load) ≤ 160 mA
Electrical connection Via PCB connector
Electrical connection 12-pin
Shaft Taper shaft; taper 1:10
Shaft diameter 9,25 mm
Mech. permissible speed n ≤ 15000 min-1
Starting torque (at 20°C) ≤ 0,01 Nm
Moment of inertia of the rotor 2,6 x 10-6 kgm²
Natural frequency of stator coupling ≥ 1800 Hz
Permissible axial motion of measured shaft  ± 0.5 mm
Vibration 55 to 2000 Hz ≤ 300 m/s² (IEC 60068-2-6)
Shock (6 ms) ≤ 2000 m/s² (EN 60068-2-27)
Max. operating temperature 115 °C
Min. operating temperature -40
Protection IEC 60529 IP 40 when mounted
Weight Approx. 0.25 kg
