Ewith integral bearing ERO 1225 Mã sản phẩm: ERO 1225 Nhà Sản Xuất:

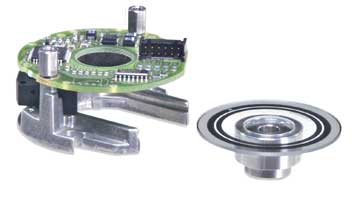

ERO 1225 [ ERO 1200 ]
Rotary Encoders without Integral Bearings for Integration in Motors
Installation diameter 52 mm
Hollow through shaft
Measuring procedures Incremental
Bearing without Integral Bearing
Incremental signals TTL
Line counts 1024
System accuracy ± 92"/± 6"
Reference marks One
Scanning frequency ≤ 300 kHz
Edge separation a ≥ 0,39 µs
Power supply 5 V± 10 %
Current consumption (w/o load) ≤ 150 mA
Electrical connection Via PCB connector
Electrical connection 12-pin
Shaft Hollow through shaft
Shaft diameter 10 mm
Moment of inertia of the rotor 2,2 x 10-–6 kgm²
Mech. permissible speed n ≤ 25000 min-1
Permissible axial motion of measured shaft  ± 0.2 mm
Vibration 55 to 2000 Hz ≤ 100 m/s² (IEC 60068-2-6)
Shock (6 ms) ≤ 1000 m/s² (EN 60068-2-27)
Max. operating temperature 100°C
Min. operating temperature -40 °C
Protection IEC 60529 IP 66 at housing; IP 64 at shaft inlet
Weight Approx. 0.07 kg
